WALL WASH FIXTURE — THE HORIZON LINEAR

Seamless. Continuous. Architectural.

A linear bar format that produces a seamless curtain of light across distances where individual fixtures cannot — the choice for large-format facades.

RCM CompliantIP67CRI Ra 93+Colour MatchedSmart Dimming Ready
Seamless. Continuous. Architectural.

Full specifications.

Fixture FormatLinear Bar — Recessed or Surface
Beam TypeContinuous Asymmetric Flood
Beam Angle80° wide span
Best ApplicationMulti-storey facades, commercial-grade residential, long wall runs
Available Lengths300mm / 600mm / 900mm / custom
LED ChipHigh-CRI SMD — Ra > 93, R9 > 60
Colour Temperature2700K / 3000K (specify on order)
Colour Consistency3-Step MacAdam (SDCM < 3)
Body Material6063 Marine-Grade Aluminium, continuous extrusion
IP RatingIP67
Driver24V Constant Voltage, RCM-Approved, IP67
DimmingDALI-2 / Phase-Cut compatible
Warranty5 Years (Australian local warranty)
CertificationRCM (Australia) compliant

Choose your surface.

Every material responds differently to light. Here's what this fixture does on each one.

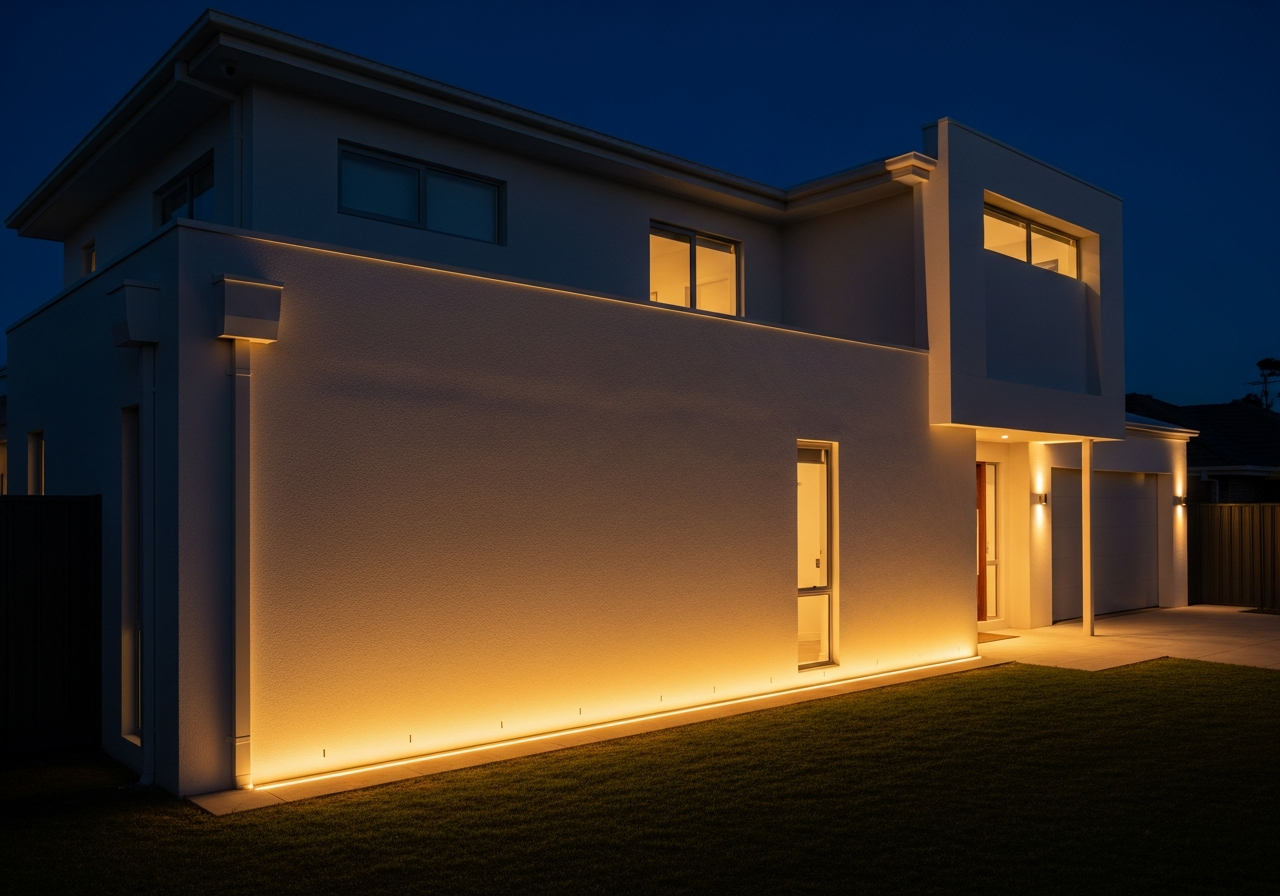

Horizon on Multi-Storey Facade

Horizon on Multi-Storey Facade

A single continuous bar reads as a drawn line of light across three or four storeys — something no run of individual fixtures can achieve. Architecture made legible at scale.

See the full spec →

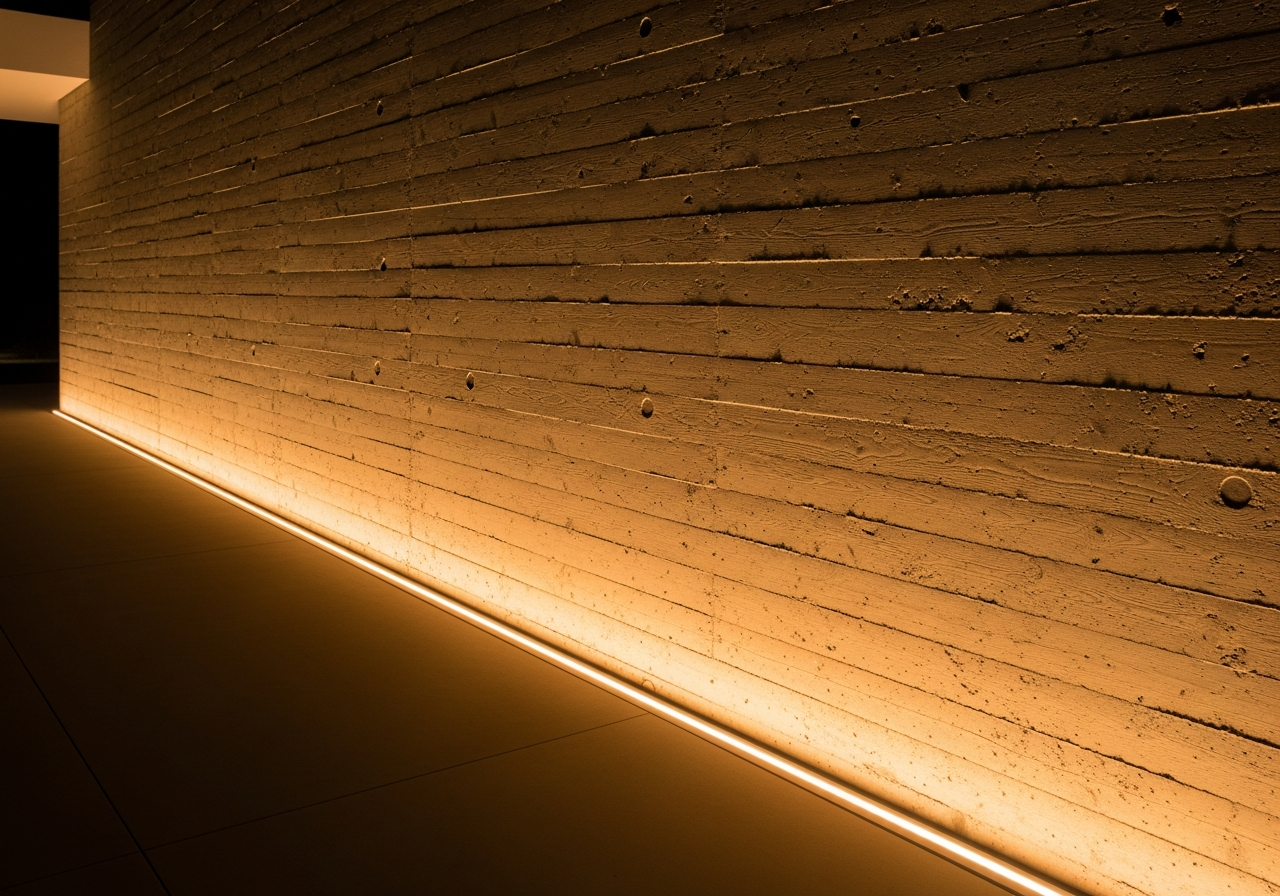

Horizon on Feature Concrete

Horizon on Feature Concrete

Broad and even, the wide beam reveals concrete's surface at scale — aggregate, shuttering marks, and board joins in the same consistent light.

See the full spec →

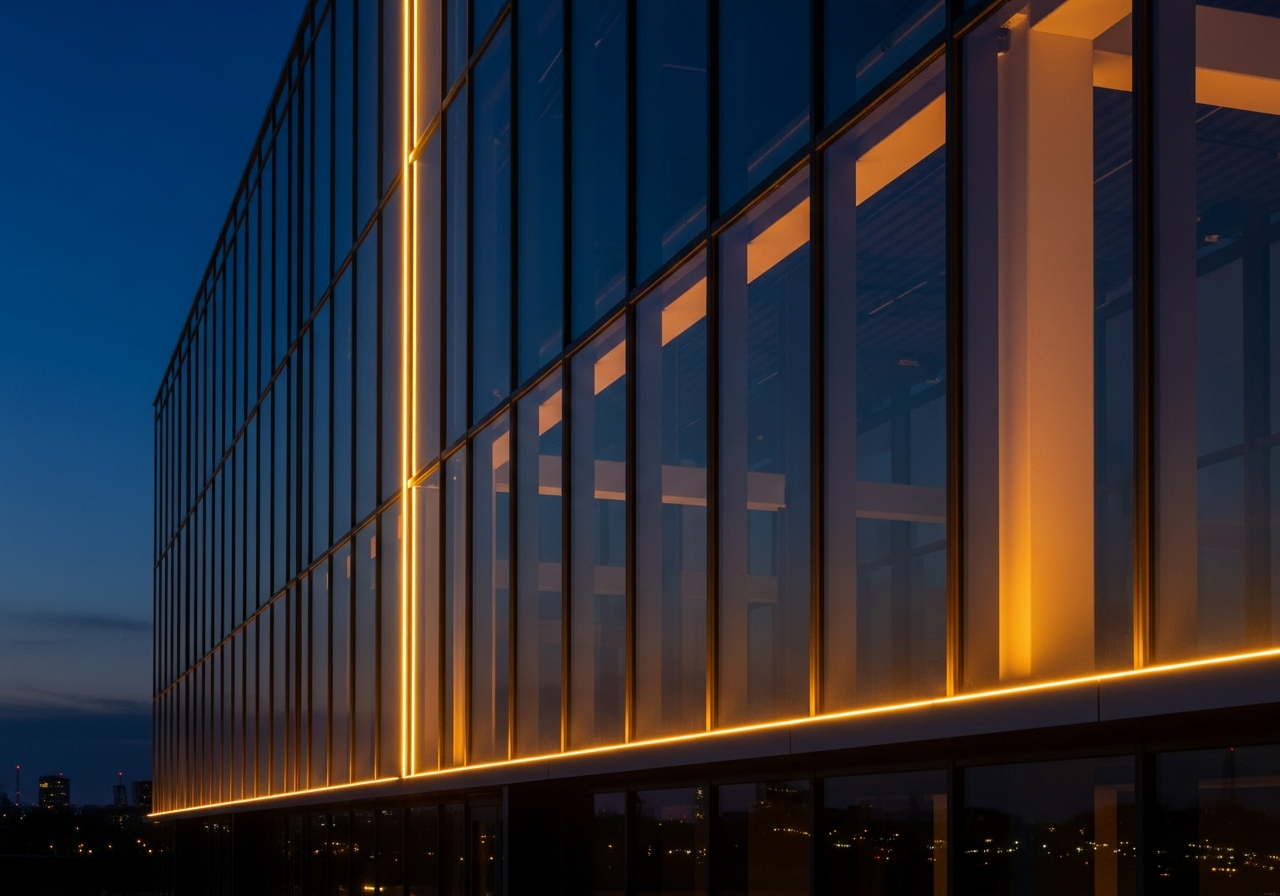

Horizon on Glass and Steel

Horizon on Glass and Steel

Reflective surfaces require predictable, even light. The Horizon's continuous output eliminates the scalloping that point-source fixtures produce.

See the full spec →

What's in the box.

The Luminaire

Marine-grade aluminium fixture with integrated high-output LED. Individually tested before despatch.

The Driver

RCM-approved driver matched to your fixture. Works with standard smart dimming systems.

The Cable

UV-stabilised outdoor cabling with weatherproof connectors. Rated for direct burial.

The Spec Card

Physical card — spacing guidelines, wiring diagram, and warranty information for your electrician.

Technical downloads.

Spec sheets, wiring diagrams, and technical data for your electrician or project documentation.

Enquire about The Horizon.

Not sure how many you need, or which surface it suits best? Ask us. We respond within 1 business day.
