WALL WASH FIXTURE — THE GRAZE 15

Designed for texture.

A narrow beam that skims stone, brick, and fluted timber — pulling shadow and depth from every surface.

RCM CompliantIP67CRI Ra 93+Colour MatchedSmart Dimming Ready
Designed for texture.

Full specifications.

Fixture FormatSurface Mount / Recessed Ground
Beam TypeAsymmetric Narrow — Wall Wash
Beam Angle15°
Best ApplicationTextured stone, brickwork, fluted timber, feature walls
LED ChipHigh-CRI SMD — Ra > 93, R9 > 60
Colour Temperature2700K / 3000K (specify on order)
Colour Consistency3-Step MacAdam (SDCM < 3)
Body Material6063 Marine-Grade Aluminium
IP RatingIP67
Driver24V Constant Voltage, RCM-Approved, IP67
DimmingDALI-2 / Phase-Cut compatible
Warranty5 Years (Australian local warranty)
CertificationRCM (Australia) compliant

Choose your surface.

Every material responds differently to light. Here's what this fixture does on each one.

Graze 15 on Italian Travertine

Graze 15 on Italian Travertine

The narrow beam angles across the surface at near-grazing incidence, pulling every natural vein and mineral pocket into sharp relief. The material becomes the feature.

See the full spec →

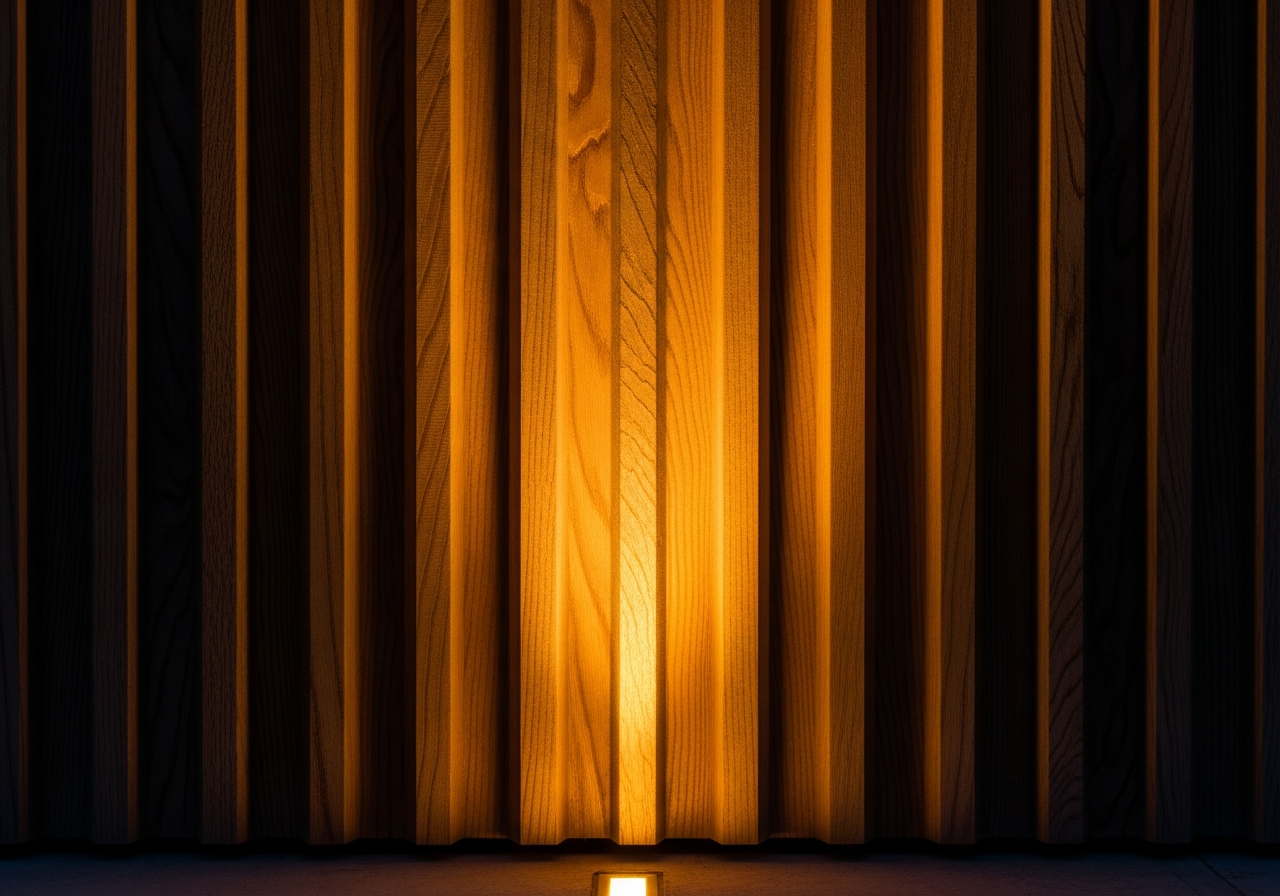

Graze 15 on Fluted Timber Cladding

Graze 15 on Fluted Timber Cladding

Each vertical flute casts its own shadow — a rhythmic pattern that changes through the evening. The timber reads as three-dimensional architecture.

See the full spec →

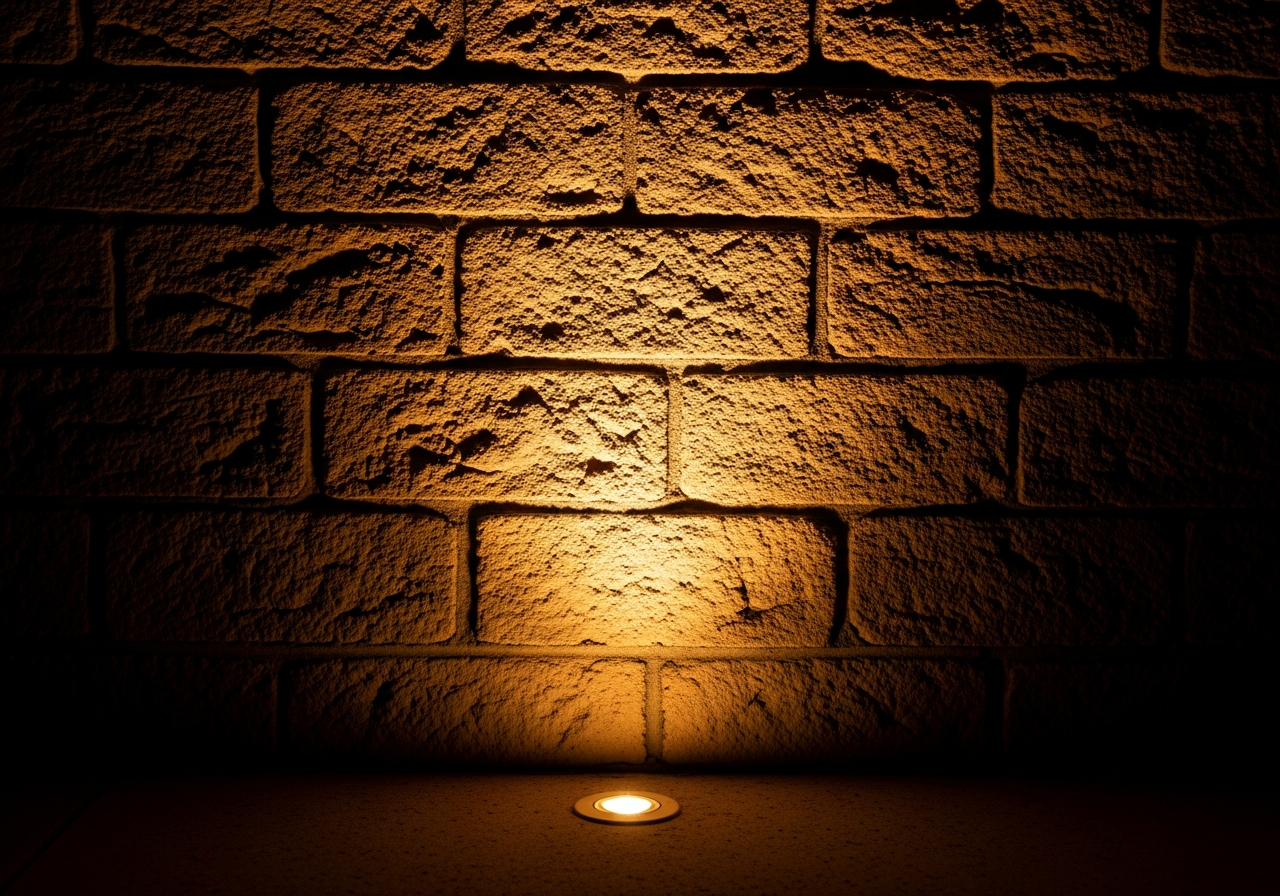

Graze 15 on Reinforced Brickwork

Graze 15 on Reinforced Brickwork

Mortar joints throw deep shadow, individual bricks read as individual faces. A wall that was background becomes foreground.

See the full spec →

What's in the box.

The Luminaire

Marine-grade aluminium fixture with integrated high-output LED. Individually tested before despatch.

The Driver

RCM-approved driver matched to your fixture. Works with standard smart dimming systems.

The Cable

UV-stabilised outdoor cabling with weatherproof connectors. Rated for direct burial.

The Spec Card

Physical card — spacing guidelines, wiring diagram, and warranty information for your electrician.

Technical downloads.

Spec sheets, wiring diagrams, and technical data for your electrician or project documentation.

Enquire about The Graze 15.

Not sure how many you need, or which surface it suits best? Ask us. We respond within 1 business day.
